Introduction of WiCi Waterproofing & Insulation Integrated Roofing System

Structure of WiCi Waterproofing & Insulation Integrated Roofing Panel

WiCi system not only can safeguard the waterproofing effect of the roof by eliminating the fluid-channeling between the waterproofing layer & insulation core, insulation core & substrate surface, but also can simplify the application technology and deminish systemic risk, greatly improve the comprehensive energy conservation effect.

To Achieve Skin-Type Waterproofing Theory

WiCi system not only can safeguard the waterproofing effect of the roof by eliminating the fluid-channeling between the waterproofing layer & insulation core, insulation core & substrate surface. Becuase of the advanced production technology in Joaboa Tech's Wuhan Production Base, the waterproofing layer, insulation core material and cement-based backing membrane, all 3 types of materials have been integrated into a complete composite panel.

WiCi Integrated Panel Approved as The China National Key New Product

In October 2014, WiCi Waterproofing & Insulation Integrated Roofing System was approved with The National Key New Product Certificate, by four China national ministries and departments: The Ministry of Science and Technology of the People's Republic of China, The Ministry of Environmental Protection of the People's Republic of China, The Ministry of Commerce of the People's Republic of China, The General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, thus to get raplid promotion in the whole domestic market.

Uniqueness of WiCi Waterproof & Insulation Integrated Roofing System

As for WiCi Waterproof & Insulation Integrated Roofing System, compared with the traditional roofing system, from the very beginning of material production, construction process to the maintenance, great efforts has been made to cut down emissions and save energy. Simplest roof structure, no need of screed-coat and protective layer, excellent waterproofing & insulation effect will be fulfilled by convenient construction method, performance-price ratio enhanced greatly.

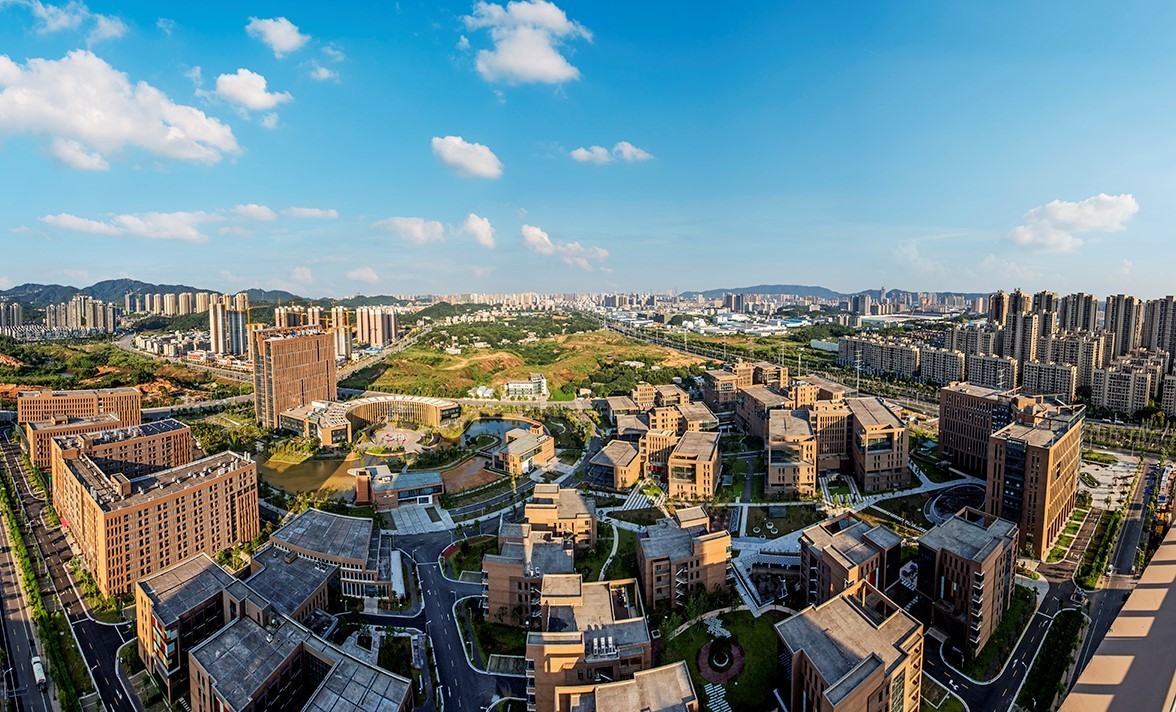

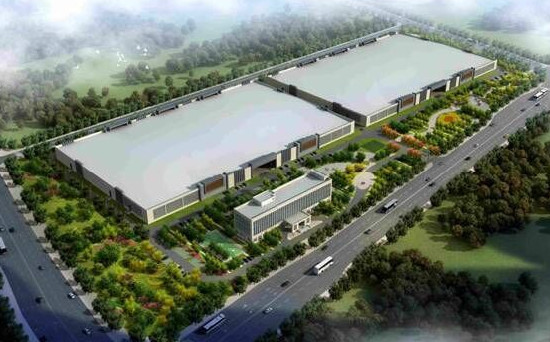

Landmark Projects of WiCi Integrated Roofing System

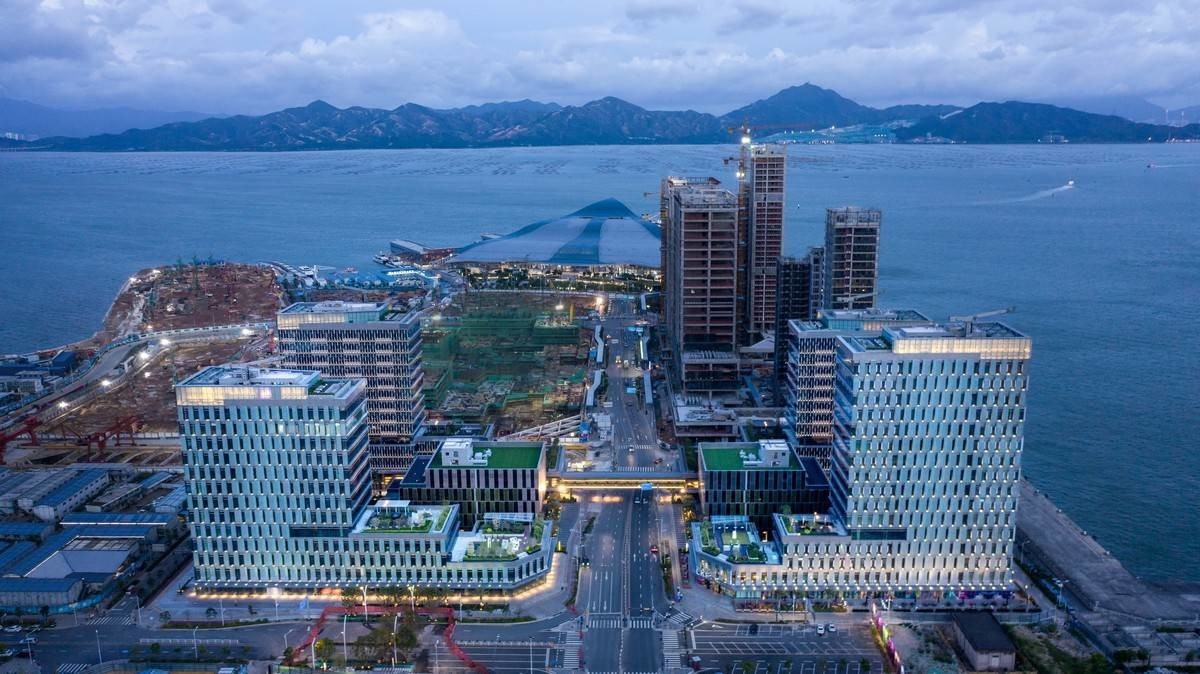

WiCi Waterproof & Insulation Integrated Roofing System has been successfully applied to hundreds of projects across the country, including: Tencent Binhai HQ Building in Shenzhen, Tencent HQ in Beijing, Chongqing Tencent Cloud Computing Data Center Phase II, Dalian Pfizer Pharmaceutical 120A Raw Material Warehouse Expansion Project, China Logistics Northeast Logistics Base, Shanghai Junshi Biotechnology Industrialization Harbor Project, Changsha Zhongdian Software Park Phase II, etc.

Comprehensive Introduction

WiCi Waterproof & Insulation Integrated Roofing System

WiCi Waterproofing & Insulation Integrated Roofing System is a UNIQUE system product comprised of FM Approved TPO/PVC Roofing Sheets or Self-adhesive Bituminous Waterproofing Membranes on top, rigid polyurethane foam or rock wook as insulation core in the middle and cement-based waterproofing membrane on the bottom by special production technology, which can be firmly bonded to concrete structure layer by polymer bonding mortar. WiCi Integrated Roofing System can only be supplied by Joaboa Tech even in the whole global market. It's also a new system that has been recognized and appraised as China National-level New Product recommended to be used in the whole domestic market. For almost all the HQ's of TENCENT and ALIBABA, WiCi System have been widely used in their roofing projects.

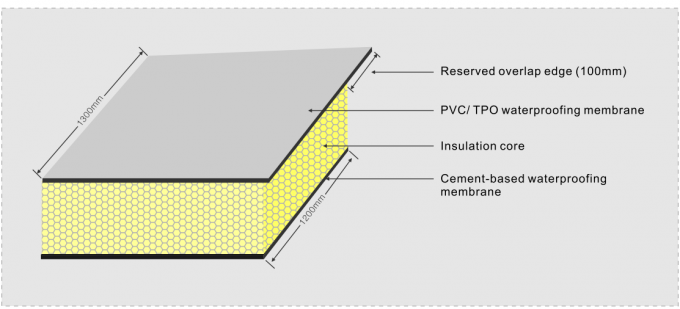

Struture and Specifications of WiCi Integrated Roofing Panel

System Features

One Step，Two Functions

Special SANDWICH structure, to achieve waterproofing & insulation functions by one step.

Efficient and Energy-saving，Durable Performance

As the insulation core is not absorbent and no fluid-channeling inside of the panel, the waterproofing & insulation composite system can show long-lasting stable performance.

Convenient and Fast for Construction，Time-saving

All the tradtional construction processes like screed-coat, insulation layer, waterproofing layer and protective layer have been combined into one step. The whole construction period will be greatly reduced.

Cost-saving，Cost-effective

Simplest roof structure, no need of screed-coat and protective layer, excellent waterproofing & insulation effect will be fulfilled by convenient construction method, performance-price ratio enhanced greatly.

Energy Conservation and Emission Reduction，Environment-friendly

Compared with the traditional roofing system, from the very beginning of material production, construction process to the later maintenance, great efforts has been made to cut down emissions and save energy.

Ceitified by Authoritative Test Organization，Credible Quality

World-class level, passed authorized certification issued by FM Approvals, USA.

Application Range of WiCi Integrated Roofing System

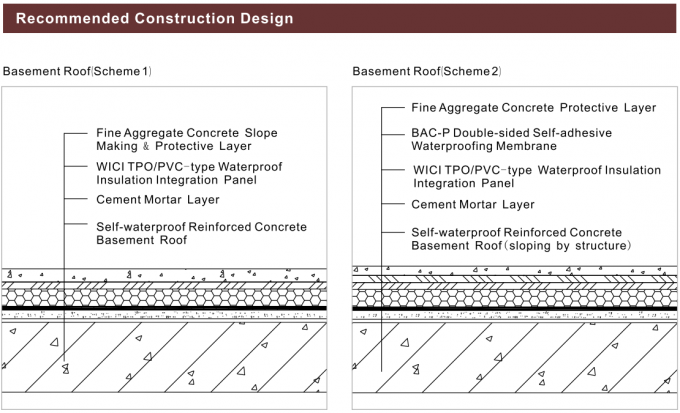

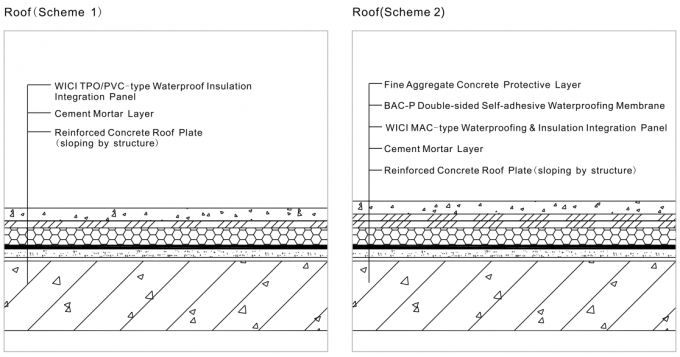

Suitable for the waterproofing & insulation engineering projects of roof, basement roof, etc.

Construction Methods

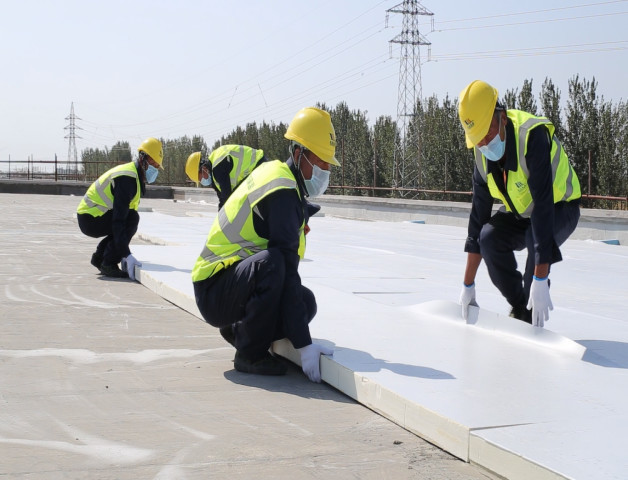

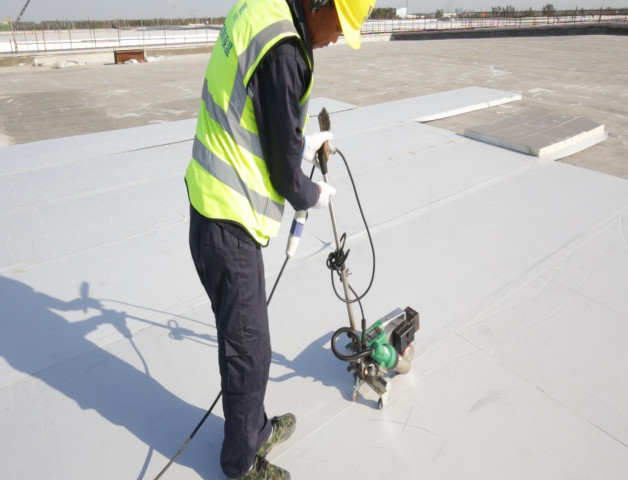

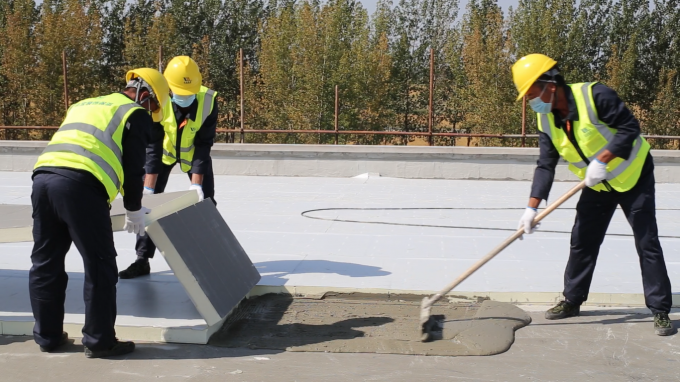

After applying WiCi Integrated Panel together with bonding mortar on the substrate with Wet Application which is invented by Joaboa Tech as well, there will be no WATER MIGRATION between waterproofing layer & insulation layer, insulation layer & substrate.

Storage and Transport

1. During the transportation of this product, please pay attention to sun protection, waterproof, avoid mechanical damage, and prohibit fireworks.

2. The storage site should be solid and smooth, and the height of bulk stacking should not exceed 2 meters. The bottom of the pile shall be padded with wood or foam board. The distance between the wood should not be more than 2 meters. The surface of the board shall be covered with colored strip cloth for protection.

3. It should be laid flat during transportation. During vertical transportation, safety belt should be used to firmly fix the plate.

4. Avoid sun and rain, and prevent contact with heat source, fire source, and organic solvents.

Upgraded Version of WiCi Integrated Roofing System to Be Used on Steel Roofing (with Steel Plate on the Bottom Side)

It Might Be The Simplest Integrated Steel Roofing System in the World!

Market Share

Joaboa Tech, Inventor and Representative Brand of Chinese Self-adhesive Waterproof Membrane, whose market share has ranked as Top 1 in Chinese domestic market for over 10 years, widely used in Viet Nam, Cambodia, India, etc. as well.
